4K UHD IP-based Video Production System

Model: Connect Spark Pro
  • HDMI 2.0 video input with embedded audio
  • IP output via NDI® with near-zero latency
  • Support for 4K UHD and 1080p video at up to 60fps
  • Optional multicast mode for maximum efficiency
  • Web-based remote configuration and monitoring
Project List
Product Info
Tech Specs

Capture 4K UHD video directly from the source and translate to NDI® for use with any compatible system, device, or software on your network with the NewTek Connect Spark™ Pro video converter. The fastest, easiest, and most flexible way to acquire 4K UHD video for your IP-based production workflow.

4K UHD to NDI ®

Turn any compatible 4K UHD device into an IP video source instantly. Simply plug it into Connect Spark™ Pro, and the signal is translated to full-bandwidth NDI®. No complex configuration or excessive cabling required.

Virtual PTZ

Get more sources from every signal with integrated Virtual PTZ functionality. Start with the full-resolution video image, define different areas of interest, then store as full-frame shot presets that you can switch or move between seamlessly.

Multicast Mode

Have your 4K UHD source available wherever you need it on your network. With the optional multicast mode enabled, the same NDI® output from your Connect Spark™Pro can be served to multiple destinations simultaneously, saving valuable bandwidth.

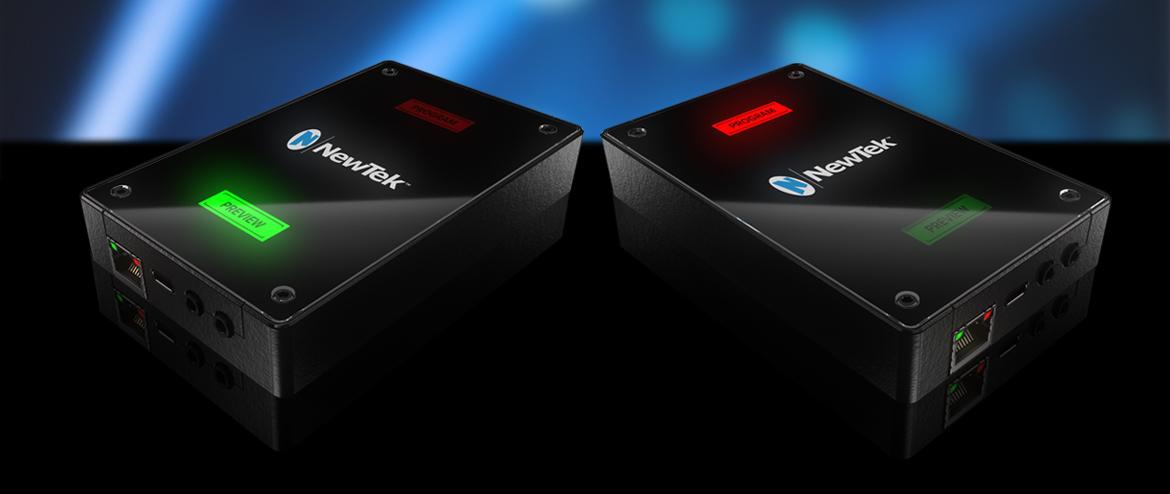

Sleek Design

Camera-mountable, with built-in tally lights and support for Power over Ethernet (POE), Connect Spark™ Pro integrates effortlessly into any professional production setup or studio environment.

  • HDMI 2.0 video input with embedded audio
  • IP output via NDI® with near-zero latency
  • Support for 4K UHD and 1080p video at up to 60fps
  • Optional multicast mode for maximum efficiency
  • Web-based remote configuration and monitoring
  • NDI® tally support with built-in tally lights
  • Wired Gigabit Ethernet connectivity
  • Support for Power over Ethernet (POE)
  • Hardware-based FPGA and SoC technology
  • Industry-standard, threaded-screw camera mount
