4K HD HDBaseT Extender Kit

Model: VAC-HT12-KIT
  • Turn any HDMI Camera into a one-cable-to-camera location
  • Supports HDMI 1.4 deep color, full-3D and 4K/2K video (HDBaseT) - Tx/Rx
  • Transmitter contains HDMI 1.4 input, supplies 12V power to camera and receives RS485/232 (cross convert ability) signals
  • Receiver contains HDMI 1.4 output, RS485/232 control connect and Cord to power both Tx/Rx (24V PoC)
  • Transmits uncompressed video up to 4K30 (100m) at 4:4:4 8-bit, 4K60 (100m) at 4:2:0 8-bit and Full-HD (1080p/1080i/720p) at 12/16-bit formats and convert to HDMI 1.4 output
Project List
Product Info
Tech Specs
Documents

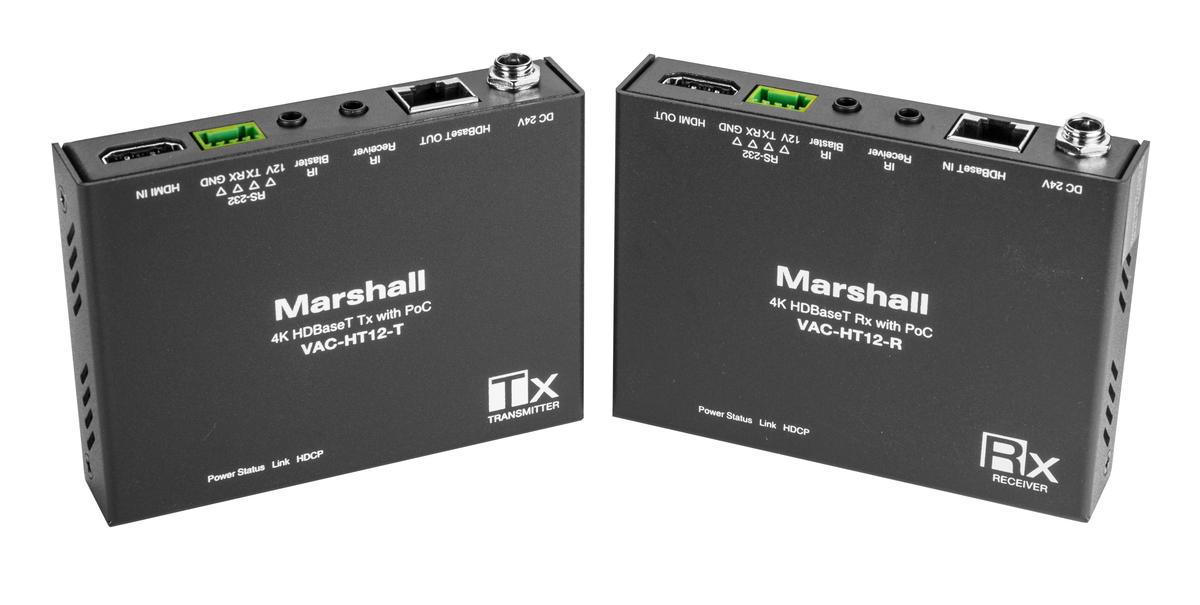

The VAC-HT12-KIT 4K HDBaseT Extender Kit allows you to extend 4K HDMI signals, RS232 and infrared control signals up to 100m (328ft). The VAC-HT12-KIT consists of two units, the VAC-HT12-T transmitter and VAC-HT12-R receiver.

• The VAC-HT12-T combines HDMI with IR remote control and RS232 over a single CAT5e/6/6a/7 cable.

• The VAC-HT12-R receives and separates HDMI, IR remote control and RS232 signals and provides 12VDC (maximum 1A) accessory power.

• HDCP (high-bandwidth digital copy protection) and EDID (extended display identification data) is passed transparently.

  • Turn any HDMI Camera into a one-cable-to-camera location
  • Supports HDMI 1.4 deep color, full-3D and 4K/2K video (HDBaseT) - Tx/Rx
  • Transmitter contains HDMI 1.4 input, supplies 12V power to camera and receives RS485/232 (cross convert ability) signals
  • Receiver contains HDMI 1.4 output, RS485/232 control connect and Cord to power both Tx/Rx (24V PoC)
  • Transmits uncompressed video up to 4K30 (100m) at 4:4:4 8-bit, 4K60 (100m) at 4:2:0 8-bit and Full-HD (1080p/1080i/720p) at 12/16-bit formats and convert to HDMI 1.4 output
  • RS485/RS232 (cross convert ability) and bi-directional IR Remote extender
  • Surround sound (up to 7.1-channel) or stereo digital audio
  • Easy wall mount design for concealing or mounting
  • Passes HDCP and EDID
  • Kit Includes:
  • VAC-HT12-T Transmitter and VAC-HT12-R receiver
  • 1x IR blaster
  • 1x IR receiver
  • 1x DC24V 2.7A in-line power supply with C7 power cord
  • 1x User manual
  • 2x Power adapter to 2-pin terminal block
  • 2x 4-pin female terminal block
